Item 0652 : Land Cantilever Rig 1000 HP, Capable of Drilling to 18,000 feet land rig
Item 0652 : Land Cantilever Rig 1000 HP, Capable of Drilling to 18,000 feet land rig
Location:Winnie, TX
Description
Nabors 357 Land Drill Rig 1000 HP,
Capable of Drilling to 18.000 Ft (5,480 meters)
Item No.: 0652
Origin of the Drill : Nabors Drilling USA, Inc.
Rig No. : Nabors 357
Background of the drill:
In 2015 drilled a hole of 12,250 "to the depth of 8296 'in 8 days, positioning below the estimated times. Attached are field reports that show the success of operations.
COMPONENTS :

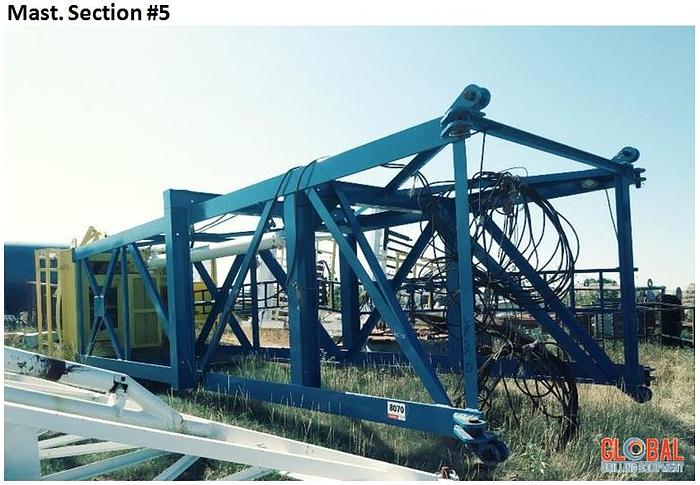

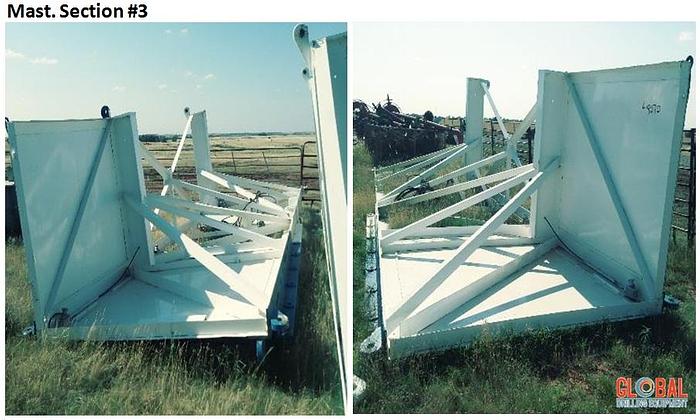

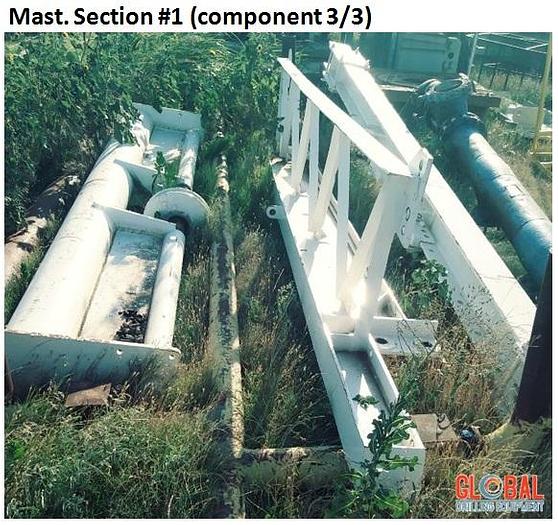

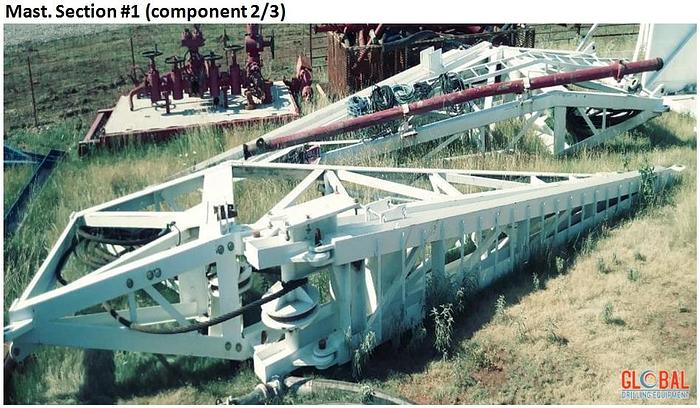

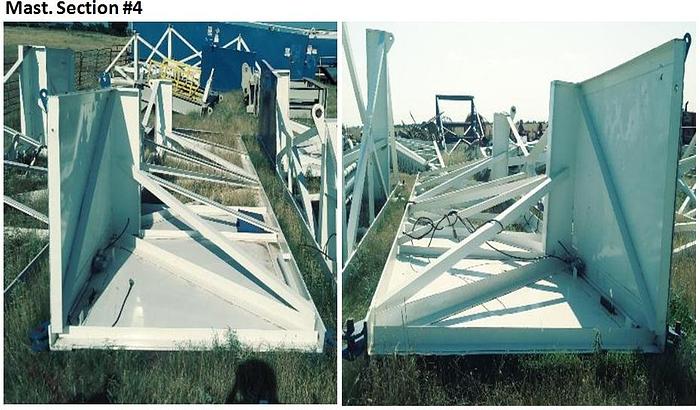

- Mast: Superior a 136' – 600.000 lbs hook load w/12 lines

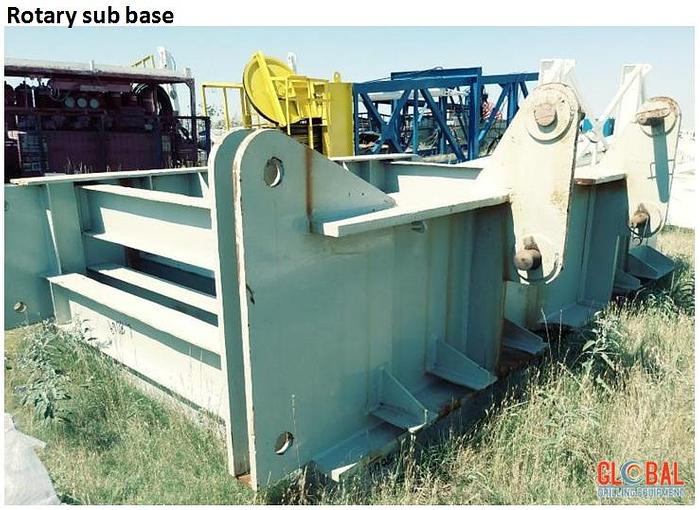

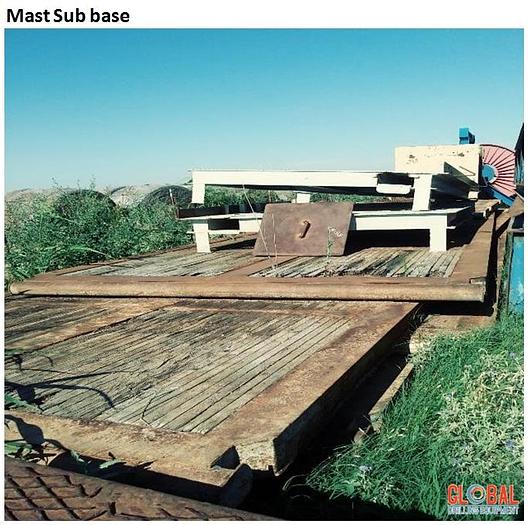

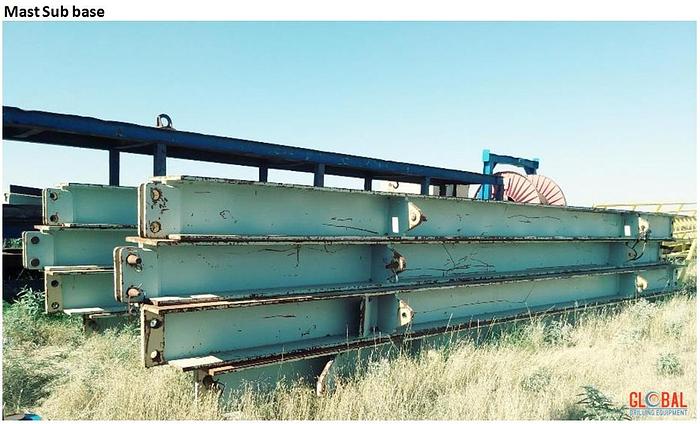

- Mast Sub base:
# 1 – Wooden Platform
(Quantity – 5) (8Ft x 40Ft) and
(Quantity – 2) (8Ft x 15Ft)
# 2 – Double Metal Beams
(Quantity 6) (26Ft x 6.6Ft)

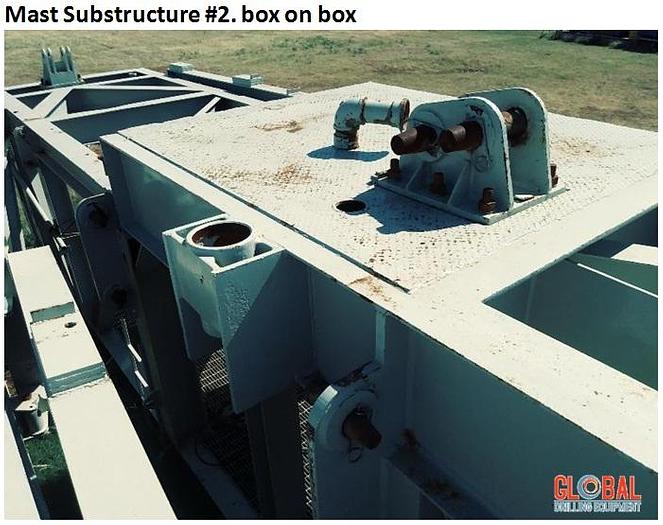

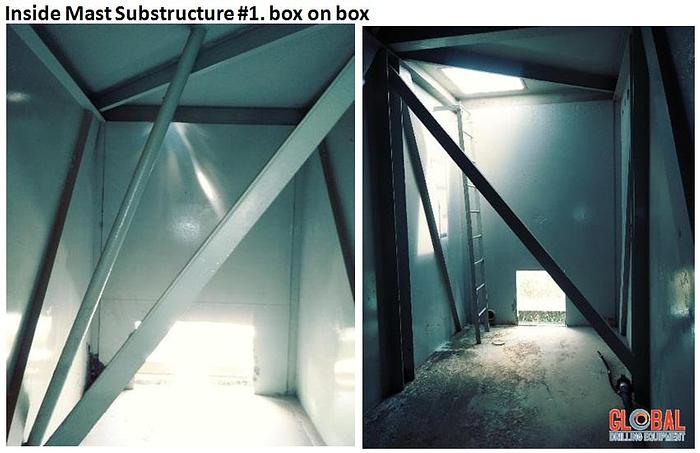

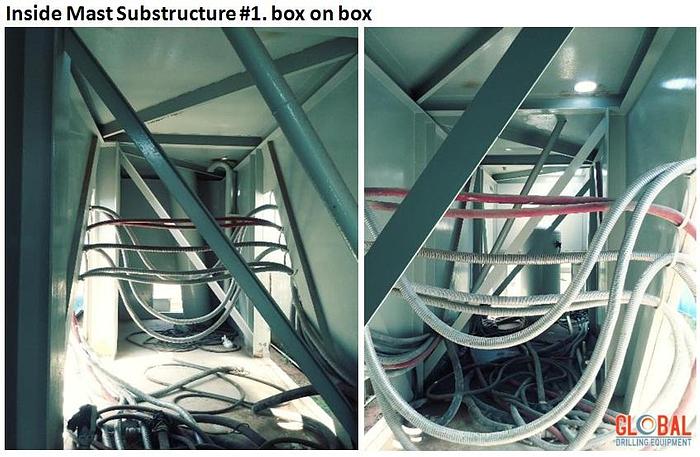

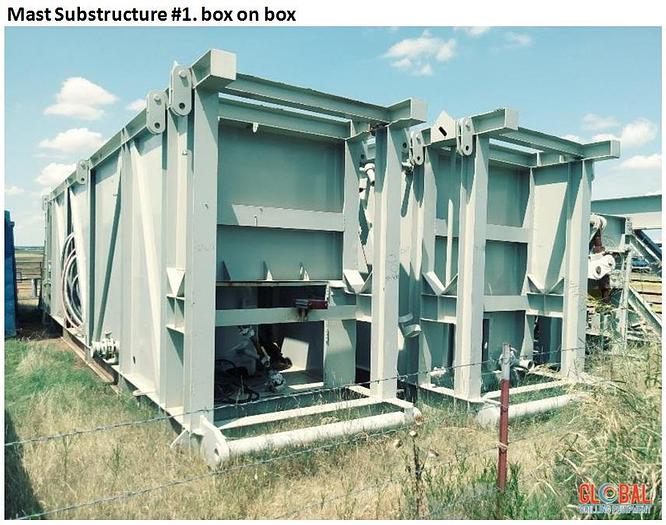

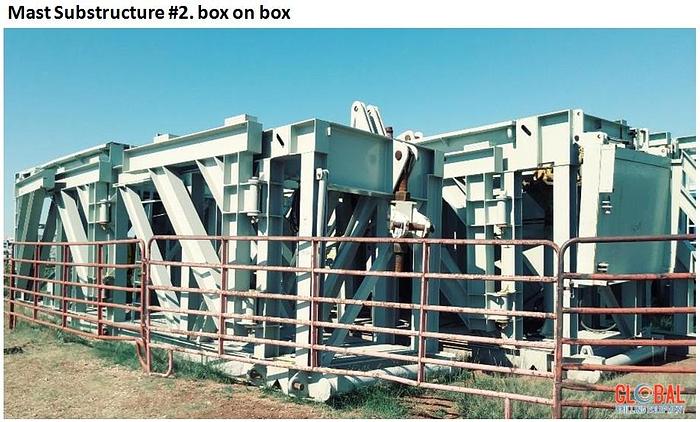

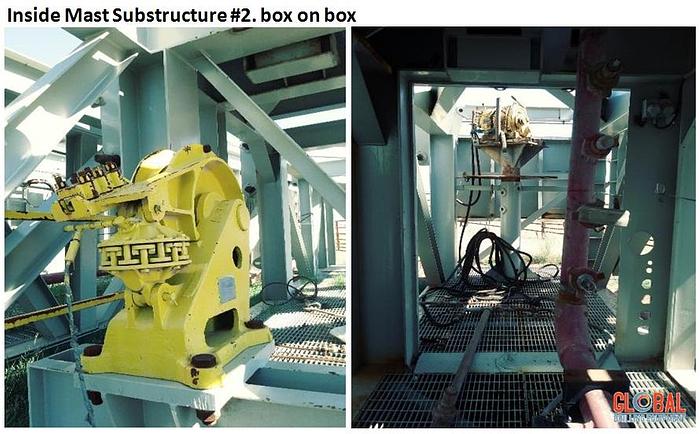

- Mast Substructure: 20' box on box

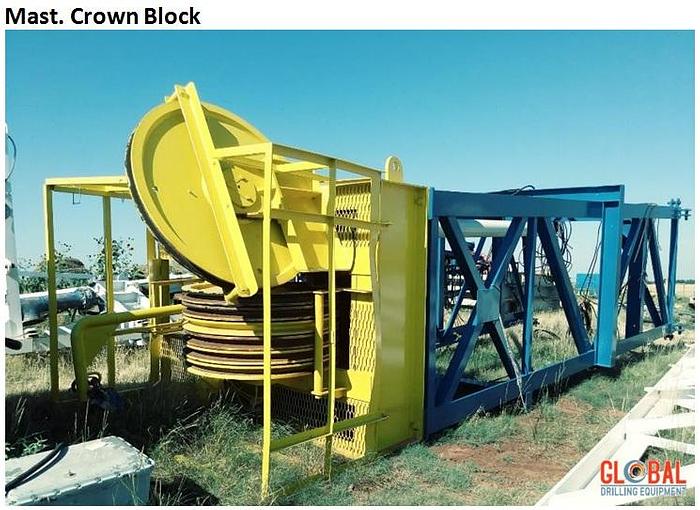

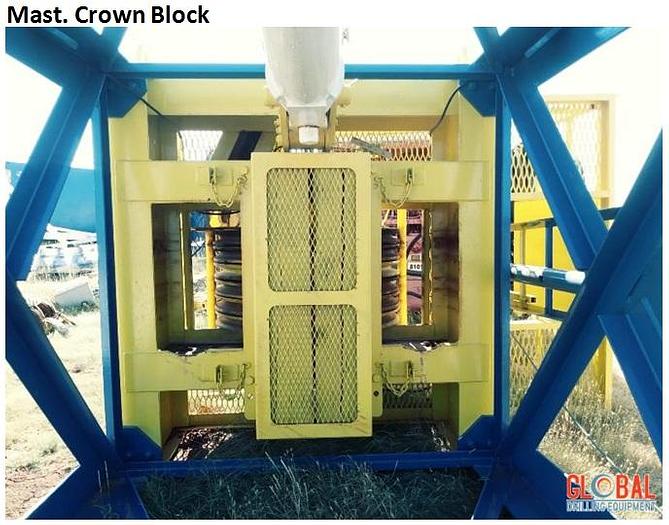

- Crown Block: Max. capacity : 400 Ton. Lebus grooved for 1-1/4" wire line, 07 sheave, 12 lines
- Swivel : 300 TON
- Rotary Table: Size 27-1/2", Double Sprocket
- Drawworks: Capacity - 1000 HP
- 3-Units 1030' KW generators.
- Mud pumps (Triplex) : 2-Units, Capacity of 1000HP, 5,000 PSI

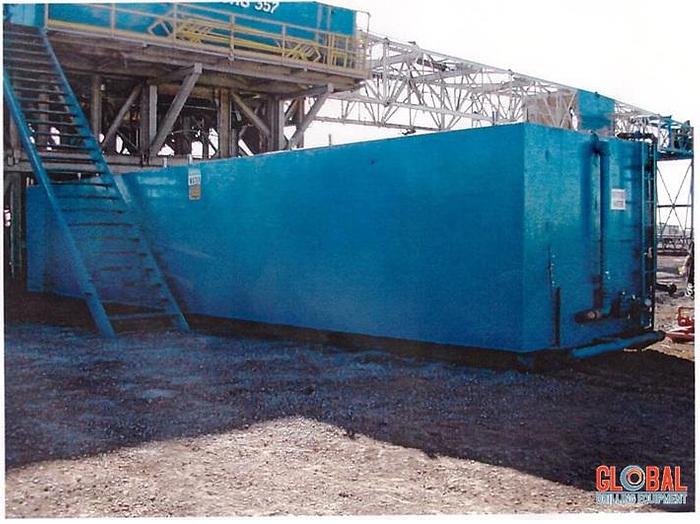

- Water Storage (Square Tank): 500lbs, with Pumping Room
- Accumulator : 6-Station
- Choke Manifold : 3-18", 5000PSI
- Mud Preparation House : 40' x 8' x 8'
Specifications
| Condition | Used |
| Stock Number | 0652 |
| Mast substructure | 20’ box on box |
| Mast | superior a 136’ – 600.000 lbs hook load w/12 lines |
| Drawworks | 1000 HP |
| Crown block | Lebus grooved for 1-1/4” wire line, 07 sheave. |
| Primary power | 3 – Caterpillar D-399 diesel engines rated at 1250 HP each. 3 kato 1030’ KW generators. |
| 02 mud pump | - Mud pumps (Triplex) : 2-Units, Capacity of 1000HP, 5,000 PSI |
| Water storage | 500 BBL |
| Full storage | 16.174 gallon |
| Hook/block | 400 TON, Lebus grooved for 1-1/4” wire line, 06 sheave. |
| Swivel | 300 TON |
| Rotary | 27-1/2” |
| Accumulator | 6 station |
