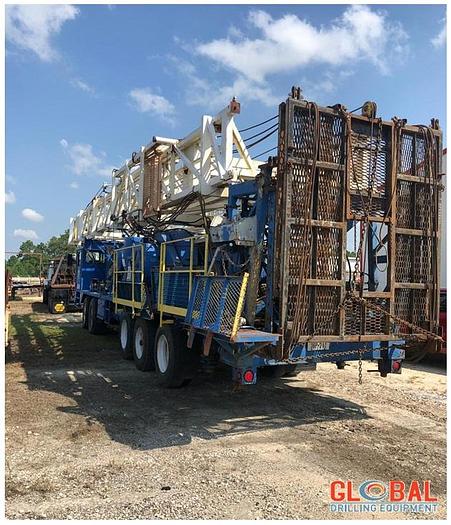

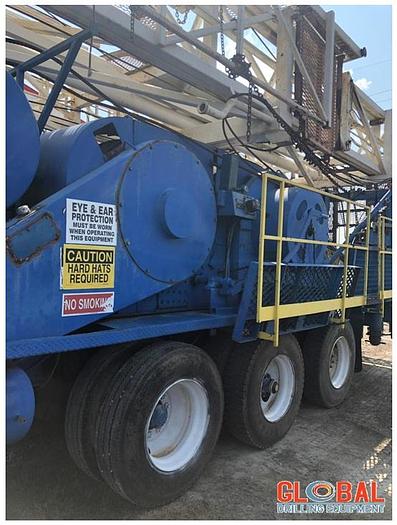

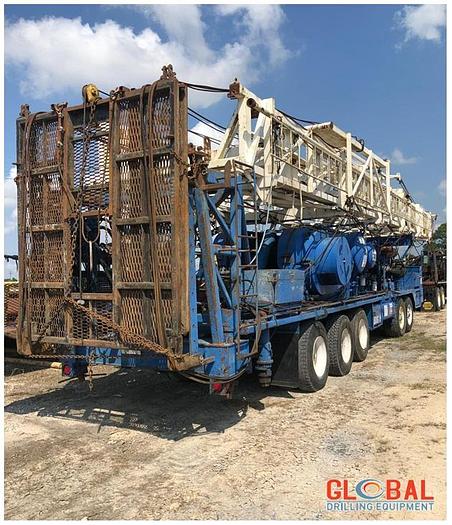

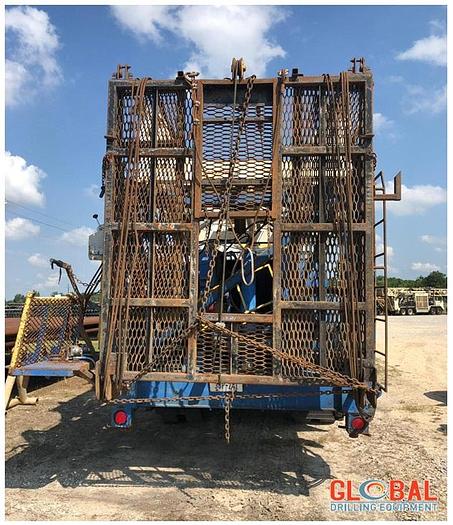

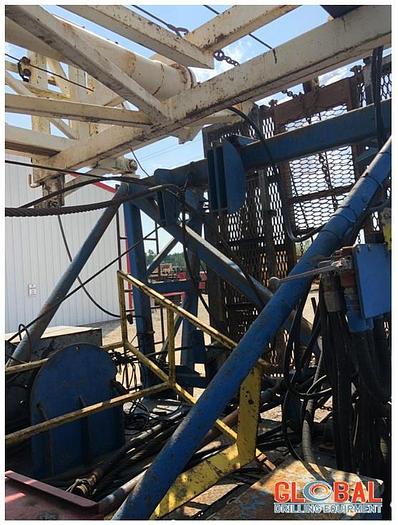

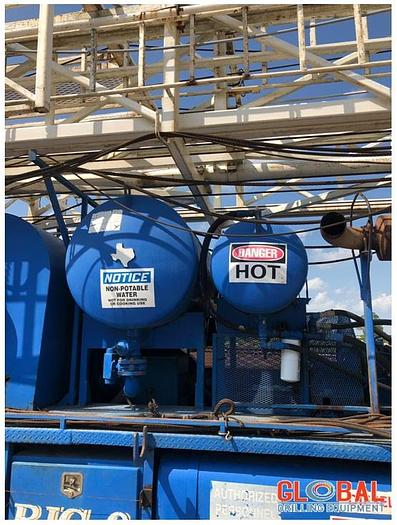

Item 0941 : 1981 Corsair Crane Carrier Workover Rig

Sold

Item 0941 : 1981 Corsair Crane Carrier Workover Rig

Winnie, TX

Description

Item No. Corsair 1981 Used 1981 Corsair Crane Carrier Workover Rig Mounted on Crane Carrier, VIN 1CYEEE475BT031703 with Double Drum Drawworks

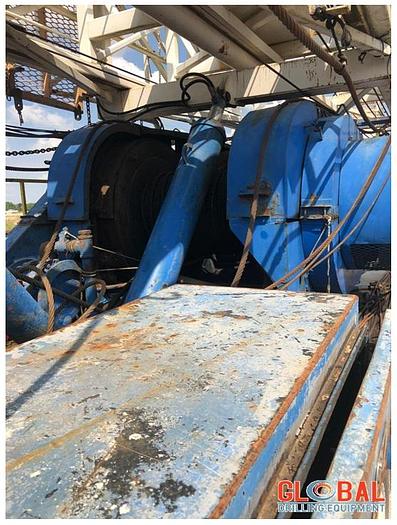

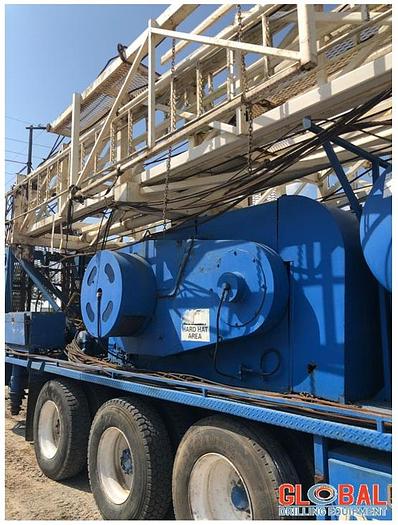

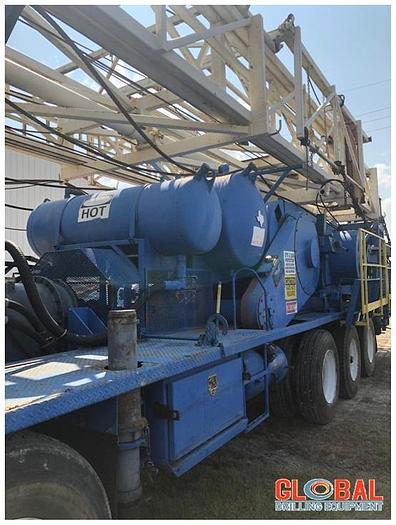

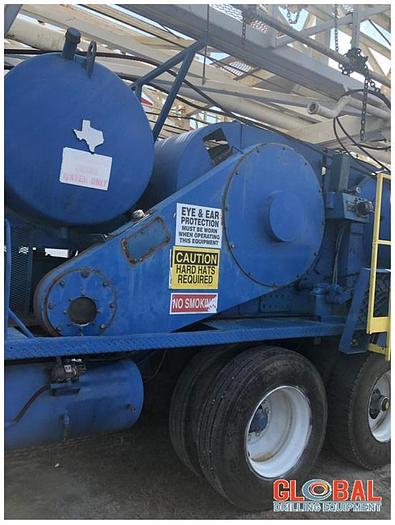

DRAWWORKS:

Model: Corsair 500/550

Single line pull: 56,400 lbs


Hoisting Drum Information

Main Barrel Dimensions: 18.75 in. x 36.375 in.

Wire Line Size: 1 in.

Wire Line: 675 ft.

Drum Clutch: 24 in. 3-Plate

Gearing: 6 Forward / 1 Reverse

Drive Chain: Double 160

Brake System: Parmac 202 / 42 x 12 Blocks

Brake Cooling: Spray Water


Sand Drum Information

Sand Drum Diameter: 12.75 in.

Standard Sand Line Size: 9/16 in.

Sand Line (included) 16,000 ft.

Drive Chain: Single 140

Brake System: 42 x 8 Blocks

Brake Cooling: Spray Water

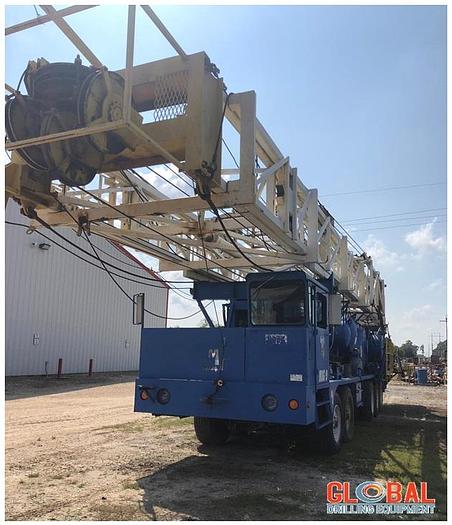

MAST

Model: 104 / 250; 108 / 300

Mast Height: 104 ft. / 105 ft.

No. of Lines to the Block: 4, 6 or 8

API Capacity: 250,000 lbs. / 300,000 lbs.

Drill Line Size: 1 in.

Racking Board Height: 55 ft. 7 in. / 66 ft. 7 in.

Rod Basket Height: 78 ft. 7 in.

Traveling Block: 100 ton 83A non-weighted


Mast Raising System

Raising Rams: Double 3-stage, double acting

Telescoping Ram: (1) single stage

Guy Lines: (2) with Ratcheting Turnbuckles

Wind Guys: (1) Set

Tubing Board Guys: (1) Set

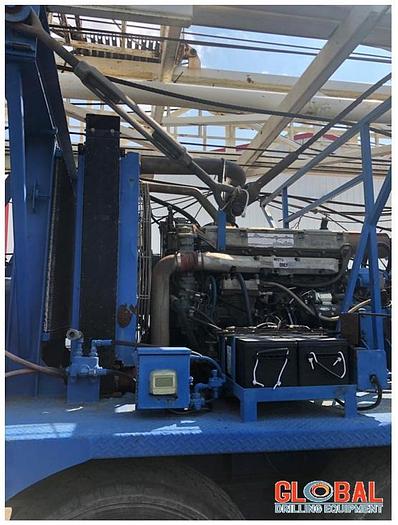

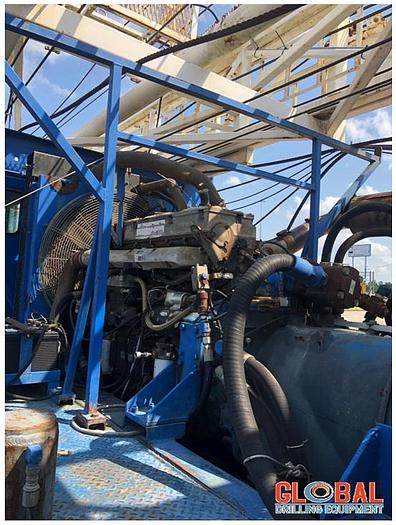

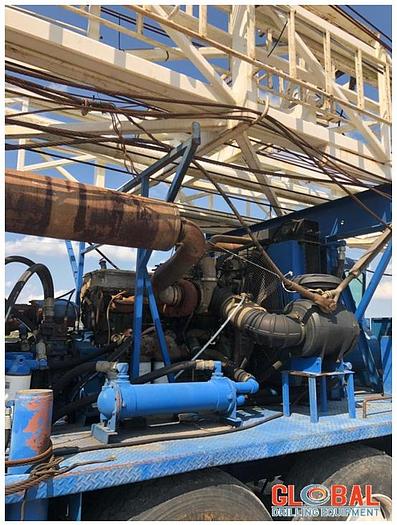

POWER SYSTEM

Engine: Cummins / Det S-60

Cylinders / Type: 6 / 4 Stroke

Horsepower: 550 hp.

Governed Speed: 2,100 rpm.

Air Cleaner: Single Dry Type

Emergency Stop: Standard


Transmission

Type: Allison M5610-Drop Box

Gearing: 6 Forward / 1 Reverse


AIR ELECTRICAL & HYDRAULIC

Compressor: 27 CFM

Electrical System: 12 Volt

Alternator: 115 Amp

Starter: 12 Volt

Batteries: (3) BCI-31

Hydraulic System: 50 gpm / 2,000 psi

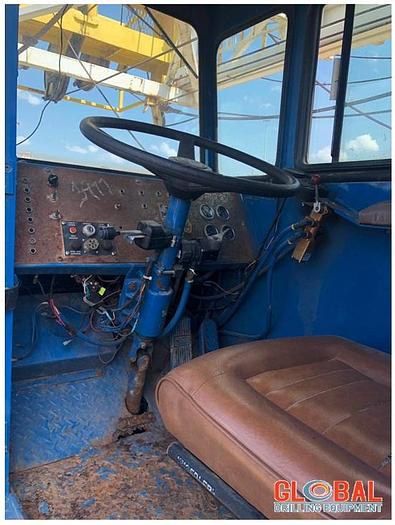

CAB

Type: Single Person

Heater / Defroster: 40,000 BTU

Drivers Seat: Air Ride

Mirrors: West Coast Style







Depth: 4900 Feet

1500 Meters

Specifications

ConditionUsed
Stock Number0941
