57668527 DERRICK, RD20R3 ASSM

57668527 DERRICK, RD20R3 ASSM

Contact us for price

Winnie, TX

orCall +1 407 580 1119

Description

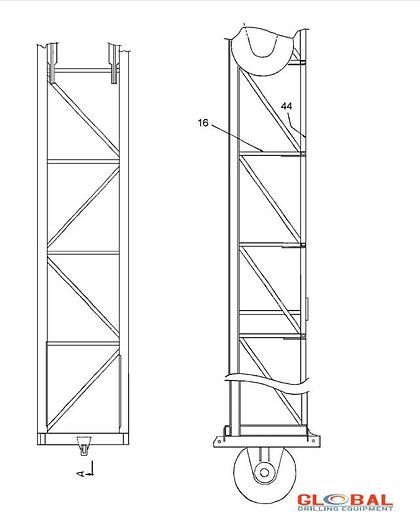

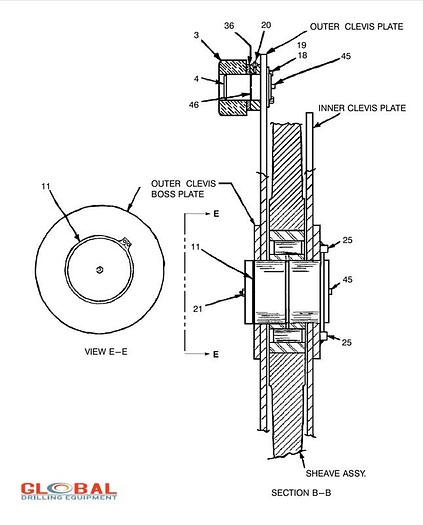

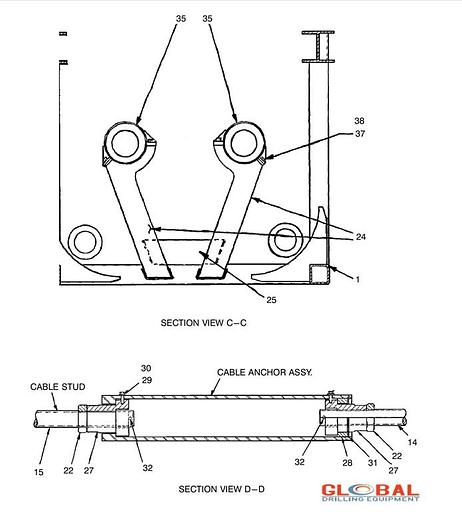

57668527 DERRICK, RD20R3 ASSM       Ref. Part No. Description  001.0 57668519 DERRICK,WELDMENT,RD20R3  –  52274818 BLOCK,PIVOT 002.0 57590986 CARRIAGE WELDMENT 003.0 57686818 BLOCK,GUIDE,2.31″,RECT. 004.0 57233306 PIN ASSY  –  57233298 PIN  –  58221938 PLATE 005.0 54508569 CYLINDER,HYD FEED  –  57731713 KIT, SEAL  –  57714016 RING,WEAR  –  57731713 KIT, SEAL  –  57012684 SCREW, SET 006.0 58221912 PIN 007.0 52277571 SHEAVE ASM  –  52275880 SHEAVE  –  52274735 BEARING  –  52274651 RACE,INNER 008.0 58222449 SHEAVE ASSY. 009.0 52274719 PIN  –  52274495 BOSS  –  52274628 PIN,CLEVIS 010.0 52274727 PIN  –  52274503 BOSS  –  52274636 PIN,CLEVIS 011.0 95265989 RING,RETAINING 012.0 95301438 RING,RETAING 013.0 95223517 RING,RETAINING 014.0 57591000 CABLE ASSY,LOWER 015.0 57591018 CABLE ASSY,UPPER 016.0 57634768 TAPE 018.0 95920674 CAPSCREW,HEX 019.0 95937413 WASHER,LOCK,HELICAL 020.0 95201299 FITTING 021.0 95201547 FITTING,LUBE 022.0 95639480 NUT,HEX JAM 023.0 58224007 BAR,SQUARE 024.0 57598617 WELDMENT,CYL SUPPORT  –  57598609 PLATE,CYL SUPPORT  –  57049876 PLATE  –  57598658 PLATE 025.0 57176323 REINFORCING PLATE 027.0 52275633 NUT,ANCHOR 028.0 52275625 BACKUP RING 029.0 95919445 CAPSCREW/35A2A166Z1HR 030.0 95081865 WASHER,LOCK 031.0 95223186 RING 032.0 95246062 PIN,ROLL 033.0 58223991 PIN 034.0 58224072 FASPIN ASSY  –  58165416 FAS PIN  –  58035395 CHAIN,ANCHOR 035.0 57598633 STRAP.CYL  –  57598625 PLATE,CYL SUPPORT 036.0 57050528 SHIM SET  –  57049884 SHIM,.06 THK  –  57049892 SHIM,.12 THK 037.0 95934659 CAPSCREW,HEX 038.0 95934733 WASHER,LOCK 042.0 57065229 PIN 043.0 57169294 HEAD MOUNTING  044.0 57050031 BAR,FLAT 045.0 95049359 PLUG,PIPE,HEX SOCKET 046.0 95086559 O-RING 57668527 DERRICK, RD20R3 ASSM Ref. Part No. Description Ref. Part No. Description 001.0 57668519 DERRICK,WELDMENT,RD20R3 001.0 57668519 DERRICK,WELDMENT,RD20R3   52274818 BLOCK,PIVOT 52274818 BLOCK,PIVOT 002.0 57590986 CARRIAGE WELDMENT 002.0 57590986 CARRIAGE WELDMENT 003.0 57686818 BLOCK,GUIDE,2.31″,RECT. 003.0 57686818 BLOCK,GUIDE,2.31″,RECT. 004.0 57233306 PIN ASSY 004.0 57233306 PIN ASSY   57233298 PIN 57233298 PIN   58221938 PLATE 58221938 PLATE 005.0 54508569 CYLINDER,HYD FEED 005.0 54508569 CYLINDER,HYD FEED   57731713 KIT, SEAL 57731713 KIT, SEAL   57714016 RING,WEAR 57714016 RING,WEAR   57012684 SCREW, SET 57012684 SCREW, SET 006.0 58221912 PIN 006.0 58221912 007.0 52277571 SHEAVE ASM 007.0 52277571 SHEAVE ASM   52275880 SHEAVE 52275880 SHEAVE   52274735 BEARING 52274735 BEARING   52274651 RACE,INNER 52274651 RACE,INNER 008.0 58222449 SHEAVE ASSY. 008.0 58222449 SHEAVE ASSY. 009.0 52274719 PIN 009.0 52274719   52274495 BOSS 52274495 BOSS   52274628 PIN,CLEVIS 52274628 PIN,CLEVIS 010.0 52274727 PIN 010.0 52274727   52274503 BOSS 52274503   52274636 PIN,CLEVIS 52274636 011.0 95265989 RING,RETAINING 011.0 95265989 RING,RETAINING 012.0 95301438 RING,RETAING 012.0 95301438 RING,RETAING 013.0 95223517 RING,RETAINING 013.0 95223517 014.0 57591000 CABLE ASSY,LOWER 014.0 57591000 CABLE ASSY,LOWER 015.0 57591018 CABLE ASSY,UPPER 015.0 57591018 CABLE ASSY,UPPER 016.0 57634768 TAPE 016.0 57634768 TAPE 018.0 95920674 CAPSCREW,HEX 018.0 95920674 CAPSCREW,HEX 019.0 95937413 WASHER,LOCK,HELICAL 019.0 95937413 WASHER,LOCK,HELICAL 020.0 95201299 FITTING 020.0 95201299 FITTING 021.0 95201547 FITTING,LUBE 021.0 95201547 FITTING,LUBE 022.0 95639480 NUT,HEX JAM 022.0 95639480 NUT,HEX JAM 023.0 58224007 BAR,SQUARE 023.0 58224007 BAR,SQUARE 024.0 57598617 WELDMENT,CYL SUPPORT 024.0 57598617 WELDMENT,CYL SUPPORT   57598609 PLATE,CYL SUPPORT 57598609 PLATE,CYL SUPPORT   57049876 PLATE 57049876   57598658 PLATE 57598658 025.0 57176323 REINFORCING PLATE 025.0 57176323 REINFORCING PLATE 027.0 52275633 NUT,ANCHOR 027.0 52275633 NUT,ANCHOR 028.0 52275625 BACKUP RING 028.0 52275625 BACKUP RING 029.0 95919445 CAPSCREW/35A2A166Z1HR 029.0 95919445 CAPSCREW/35A2A166Z1HR 030.0 95081865 WASHER,LOCK 030.0 95081865 WASHER,LOCK 031.0 95223186 RING 031.0 95223186 RING 032.0 95246062 PIN,ROLL 032.0 95246062 PIN,ROLL 033.0 58223991 PIN 033.0 58223991 034.0 58224072 FASPIN ASSY 034.0 58224072 FASPIN ASSY   58165416 FAS PIN 58165416 FAS PIN   58035395 CHAIN,ANCHOR 58035395 CHAIN,ANCHOR 035.0 57598633 STRAP.CYL 035.0 57598633 STRAP.CYL   57598625 PLATE,CYL SUPPORT 57598625 036.0 57050528 SHIM SET 036.0 57050528 SHIM SET   57049884 SHIM,.06 THK 57049884 SHIM,.06 THK   57049892 SHIM,.12 THK 57049892 SHIM,.12 THK 037.0 95934659 CAPSCREW,HEX 037.0 95934659 038.0 95934733 WASHER,LOCK 038.0 95934733 042.0 57065229 PIN 042.0 57065229 043.0 57169294 HEAD MOUNTING 043.0 57169294 HEAD MOUNTING 044.0 57050031 BAR,FLAT 044.0 57050031 BAR,FLAT 045.0 95049359 PLUG,PIPE,HEX SOCKET 045.0 95049359 PLUG,PIPE,HEX SOCKET 046.0 95086559 O-RING 046.0 95086559 O-RING

Specifications

ConditionUsed
