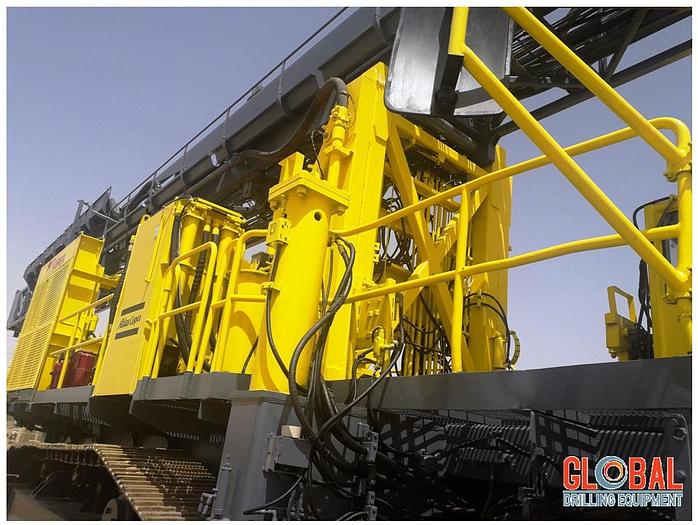

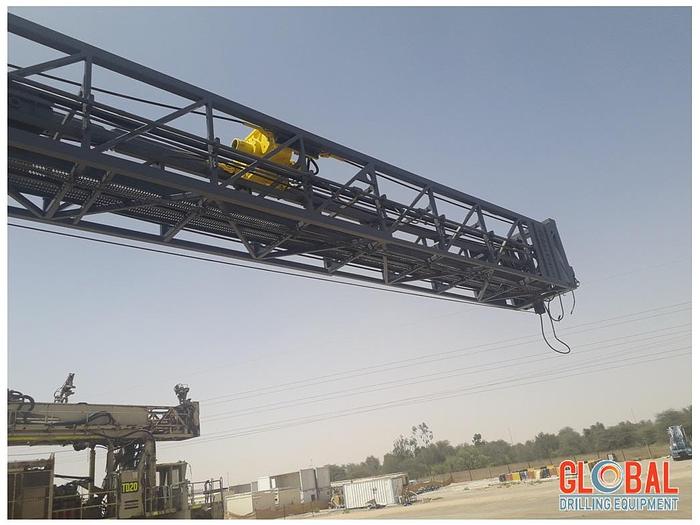

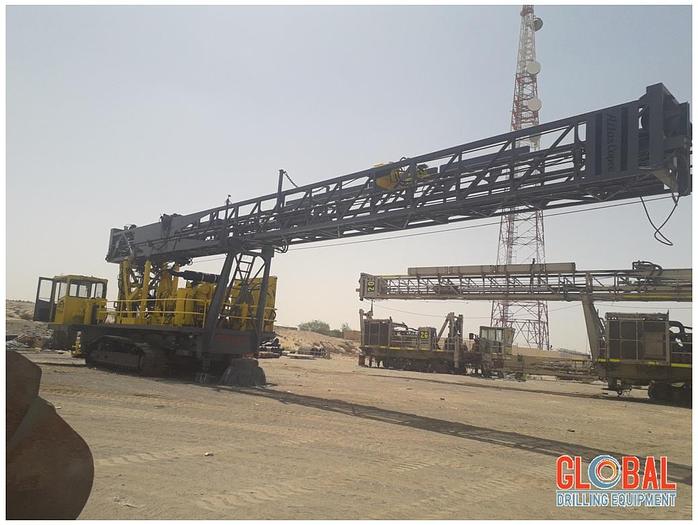

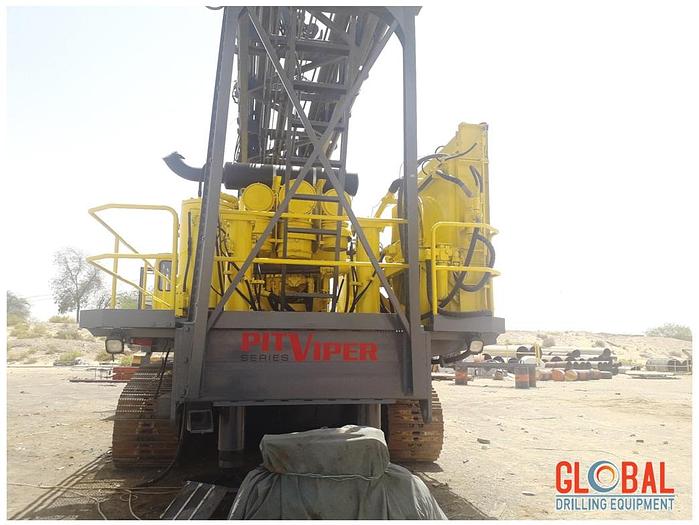

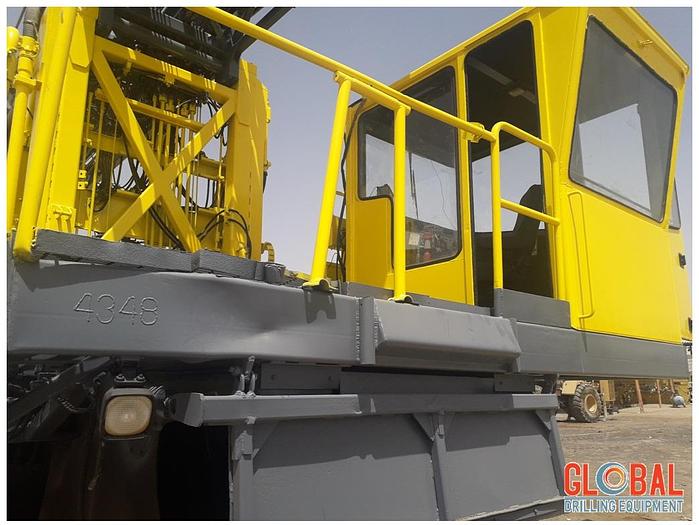

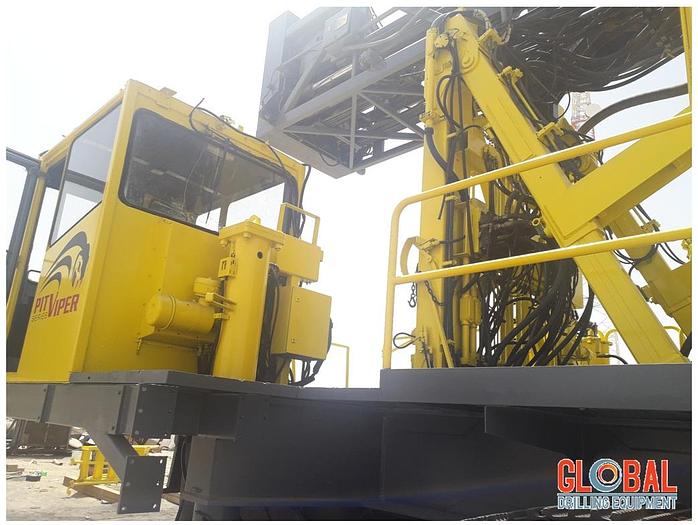

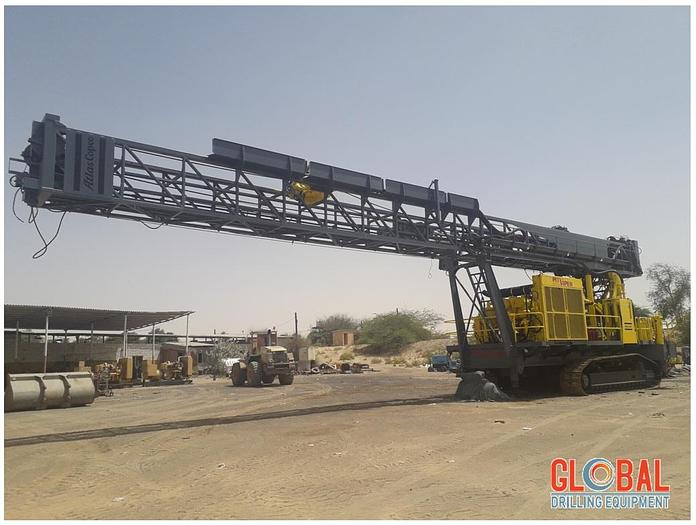

2005 Atlas Copco Pit Viper PV-271 Crawler Drill Rig

2005 Atlas Copco Pit Viper PV-271 Crawler Drill Rig

Contact us for price

Dubai, United Arab Emirates

orCall 1 800 956 8720

Description

Item 0930 : 2005 Atlas Copco Pit Viper PV-271 Crawler Drill Rig



Item No.: 0930

Model: PV-271

Manufacturer: Atlas Copco

Year: 2005

Condition: Used



I. GENERAL DATA :

-      2005 Atlas Copco Pit Viper PV-271 Crawler Drill Rig

-      S/N : 4348

-      Hours : 1392

-      Serviced / Operational

-      Newly Painted



II. TECHNICAL DATA :

-      Drilling Method : Rotary and DTH – Single Pass

-      Hole Diameter : 6-3/4” – 10-5/8” (171mm – 270mm)

-      Hydraulic Pulldown : 70,000 lbf (311 kNm)

-      Weight on Bit : 75,000lb (34,000 kg)

-      Hydraulic Pullback : 35,000 lbf / 156 kN

-      Single pass depth : 55Ft / 16.8m

-      Maximum hole depth : 105 ft / 32 m

-      Feed speed : 127 ft/min / 0.6 m/s

-      Rotary head, torque : 8,700 lgft*ft / 11.8 kNm

-      Estimated Weight : 185,000 lb / 84 tonnes



III. POWER PACK :

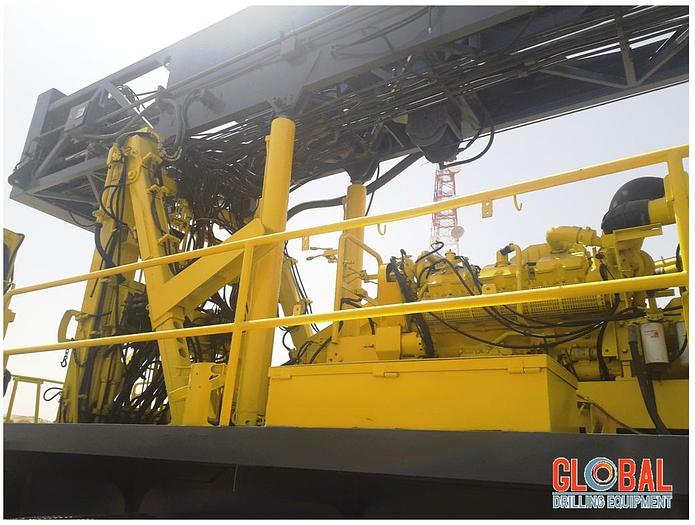

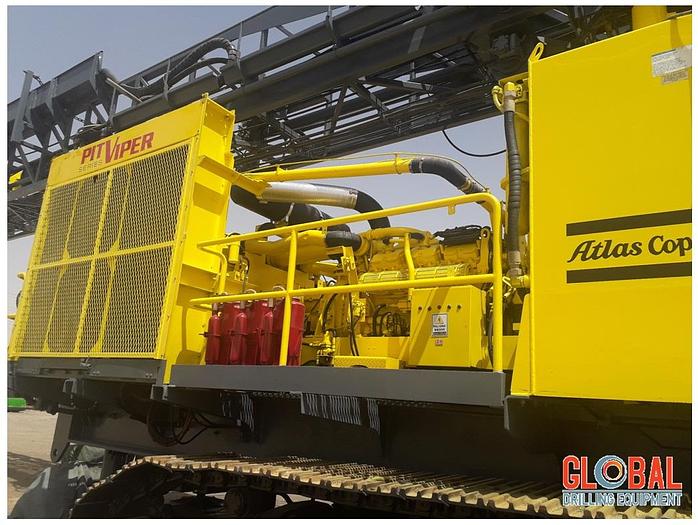

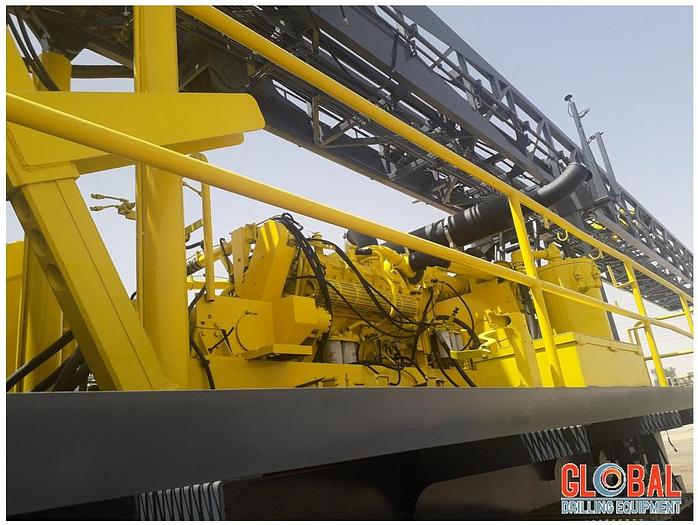

-      Deck Engine : CAT 3412, S/N : BDT04033



IV. COMPRESSOR / AIR SYSTEM :

-      Ingersoll-Rand IR285GD – 1957.9 CFM / 150 PSI ; S/N : 54697U05BJ



V. MOUNTED ON :

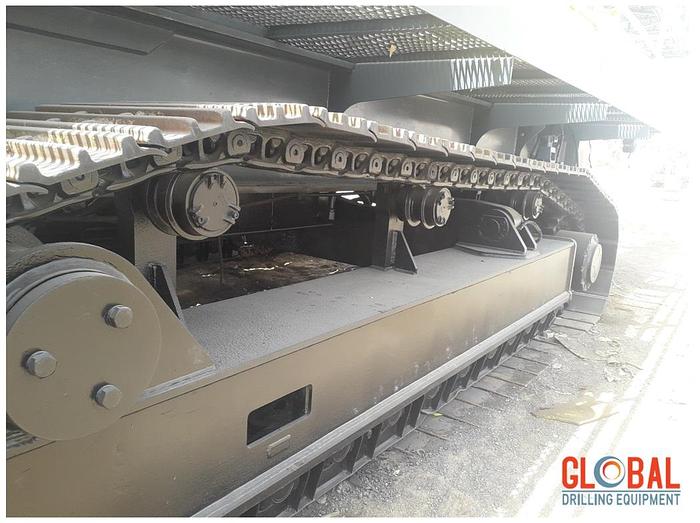

-      Crawler


Specifications

Manufacturer2005 Atlas Copco Pit Viper PV-271 Crawler Drill Rig
ConditionUsed
Serial Number4347
Stock Number0953
