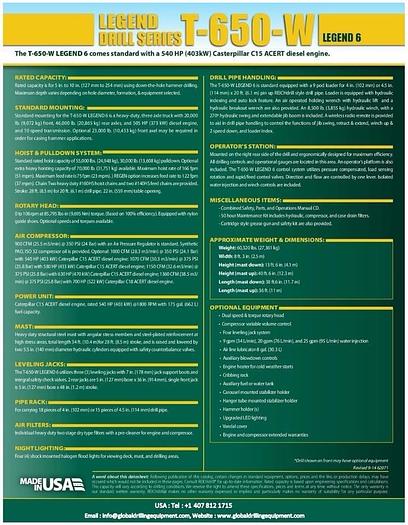

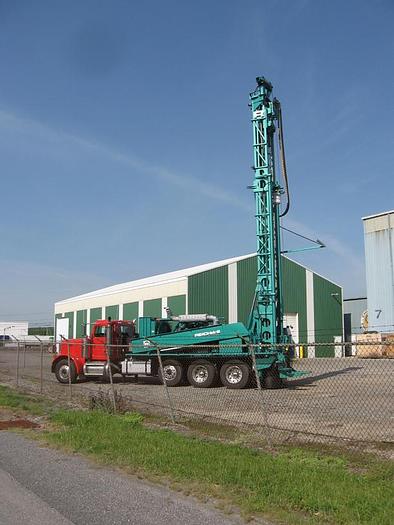

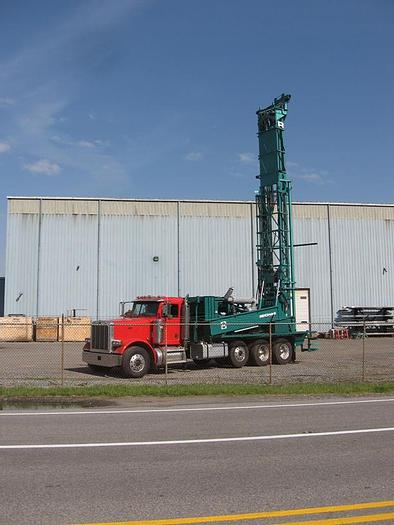

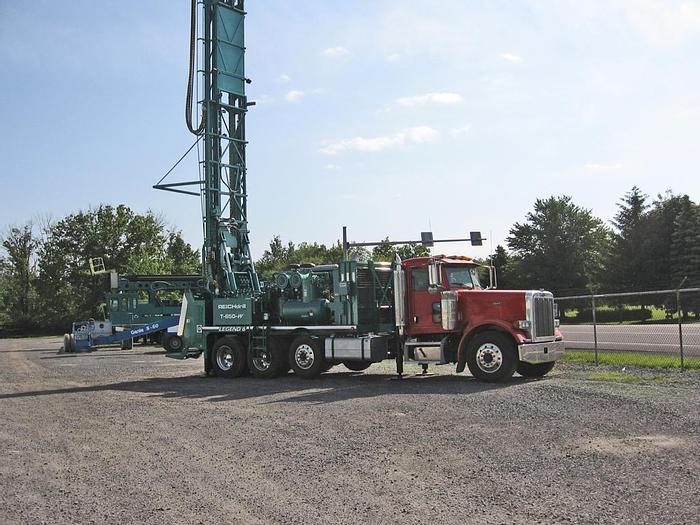

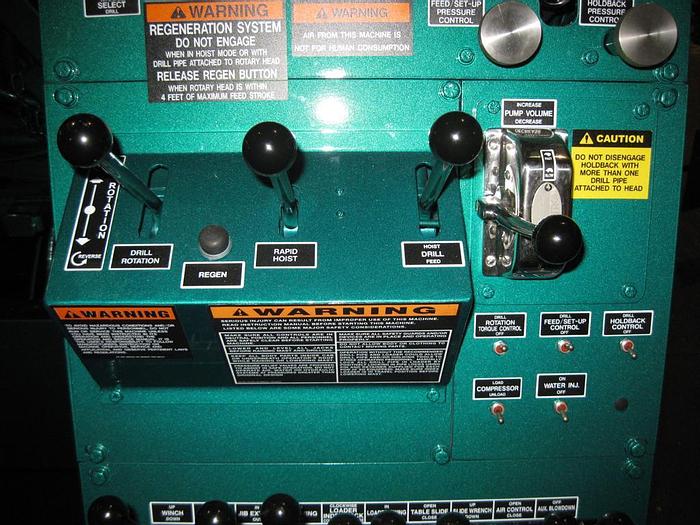

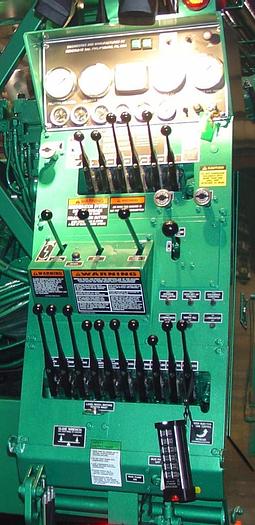

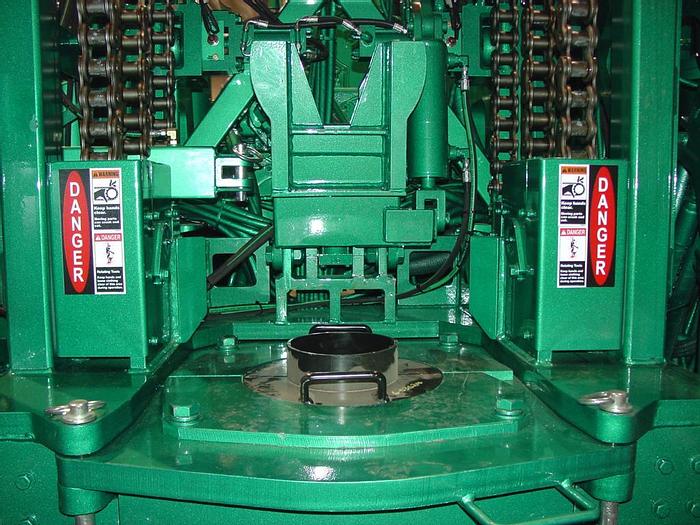

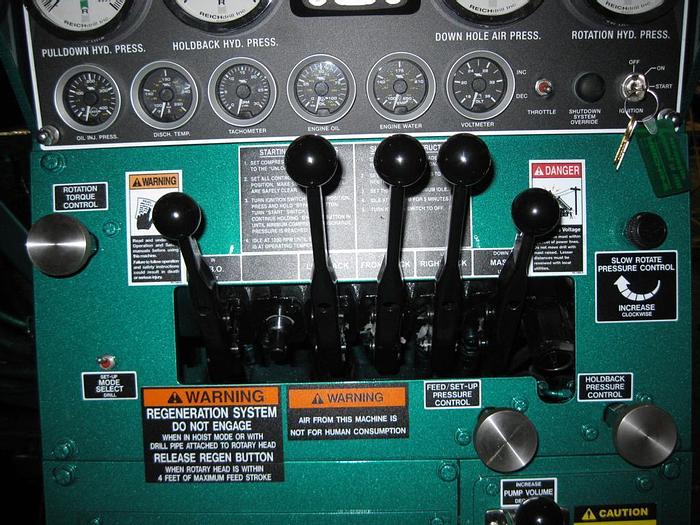

RATED CAPACITY: Rated capacity is for 5 in. to 10 in. (127mm to 245 mm) using down-the-whole hammer drilling. Maximum depth varies depending on hole diameter, formation & equipment selected. STANDARD MOUNTING: Standard mounting for the T-650-W Legend 6 is a heavy-duty, three axle truck with 20,000 lb. (9,072 kg) front 46,000 lb. (20,865 kg) rear axles. and 505 HP (373 KW) diesel engine and 10 speed transmission. Optional 23,000 lb (10,433 kg) front and may be required in order for casing hammer applications. HOIST & PULLDOWN SYSTEM: Standard rated hoist capacity of 55,000 lbs. (25,948 kg), 30,000 lb (13,608 kg) pulldown. Optional extra heavy hoisting capacity of 70,000 lb (31,751 kg) available. Maximum hoist of 166 fpm (51mpm). Maximum feed rate is 75 fpm (23 mpm).REGEN option increases feed rate to 122 fpm (37 mpm). Two heavy duty #160HS hoist chains and #140HS feed chains are provided. Stroke: 28 ft. (8.5 m) for 20 ft. (6.1 m) drill pipe. 22 in (559 mm) table opening. ROTARTY HEAD: 0 to 106 rpm at 87,795 lbs-in (9,695 Nm) torque. (Based on 100% efficiency). Equipped with nylon gulde shoes. Option speed and torque available. AIR COMPRESSOR: 900CFM (25.5 m3/min) @ 350 PSI (24 Bar) with an Air Pressure Regulator is standard. Synthetic PAO, ISO 32 compressor oil is provided. Optional: 1000 CFM (28.3 m3/min) @ 350 PSI (24.1 Bar) with 540 HP (403 KW) Caterpillar C15 ACERT diesel engine: 1070 CFM (30.3 m3/min) @ 375 PSI (25.8 Bar) with 580 HP (433 KW) Caterpillar C15 ACERT diesel engine:1150 CFM (38.5 m3/min) @ 375 PSI (25.8 Bar) with 630 HP (470 KW) Caterpillar C15 ACERT diesel engine; 1350 CFM (38.5 m3/min) @375 PSI (25.8 Bar) with 700 HP (522 KW) Caterpillar C18 ACERT diesel engine. POWER UNIT: Caterpillar C15 ACERT diesel engine, rated 540 HP (403 KW) @1800 RPM with 175 gal. (662 L) fuel capacity. MAST: Heavy Duty structural steel mast with angular stress members and steel-plated reinforcement at high stress areas, total length 34ft. (10.4 m) for 28 ft. (8.5 m) stroke, and is raised and lowered by two 5.5 in. (140 mm) diameter hydraulic cylinders equipped with safety counterbalance values. LEVELING JACKS: The T-650-W Legend 6 utilizes there (3) leveling jacks with 7 in. (178mm) jacks support boots and integral safety checks valves. 2 rear jacks are 5 in. (127mm) bore x 36in. (914mm), single front jack is 5 in. (127 mm) bore x 48 in. (1.2 m) stroke. PIPE RACK: For carrying 18 pieces of 4 in. (102 mm) cr 15 pieces of 4.5 in. (114 mm) drill pipe. AIR FILTERS: Individual heavy duty two stage dry type filters with a pre-cleaner for engine and compressor. NIGHTLIGHTING: Four (4) shock mounted halogen flood lights for viewing deck, mast, and drillings.


ManufacturerReich Drill
Stock Number0959
