RIG BLD-07, 2000HP Land Drill Rig (Package)

RIG BLD-07, 2000HP Land Drill Rig (Package)

Item No.: 10112

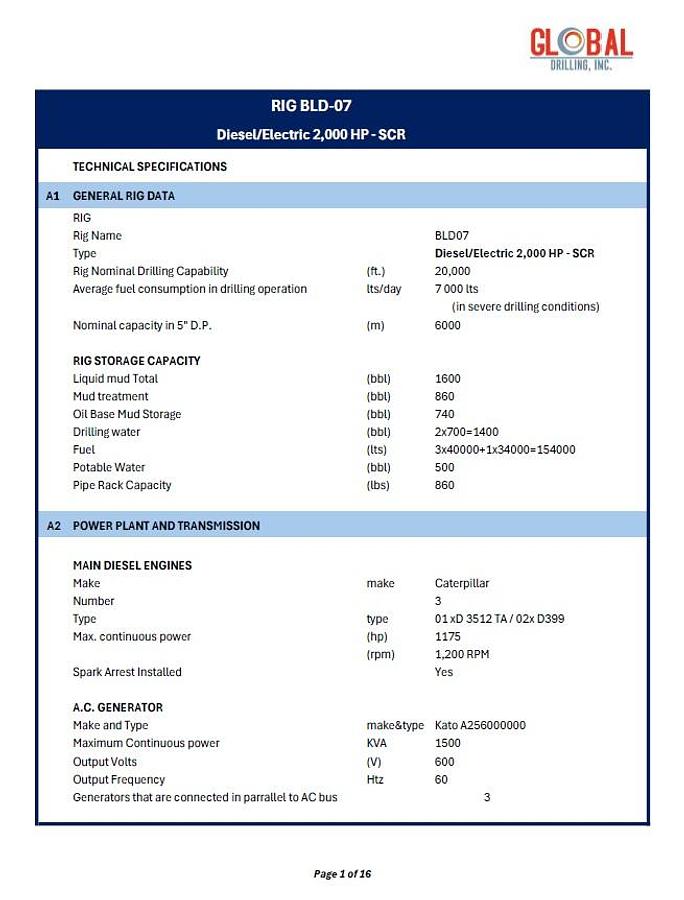

TECHNICAL SPECIFICATIONS :

GENERAL RIG DATA :

Type : Diesel/Electric 2,000 HP - SCR

Rig Nominal Drilling Capability : 20,000 Ft

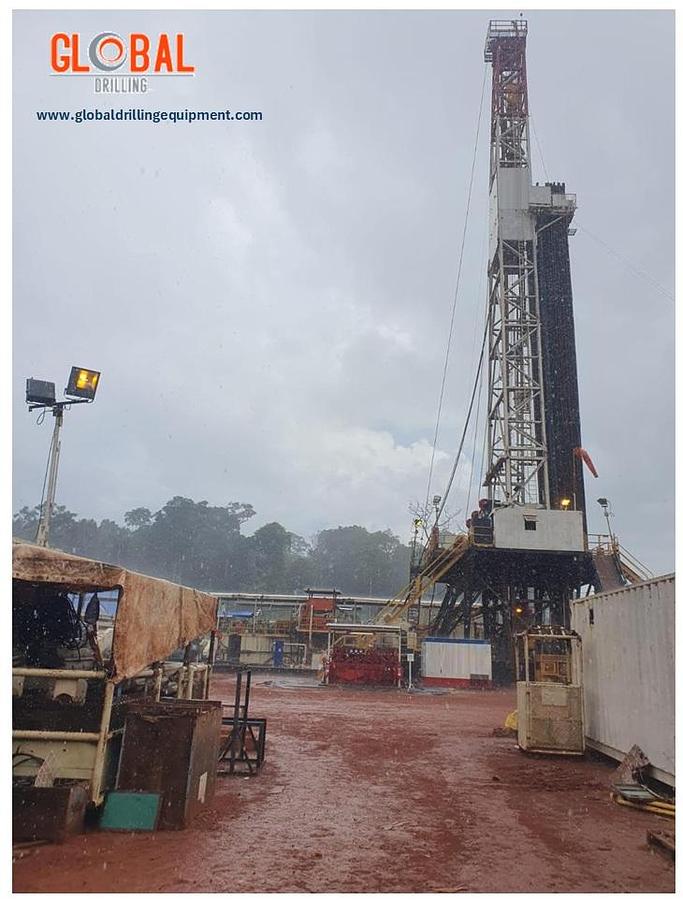

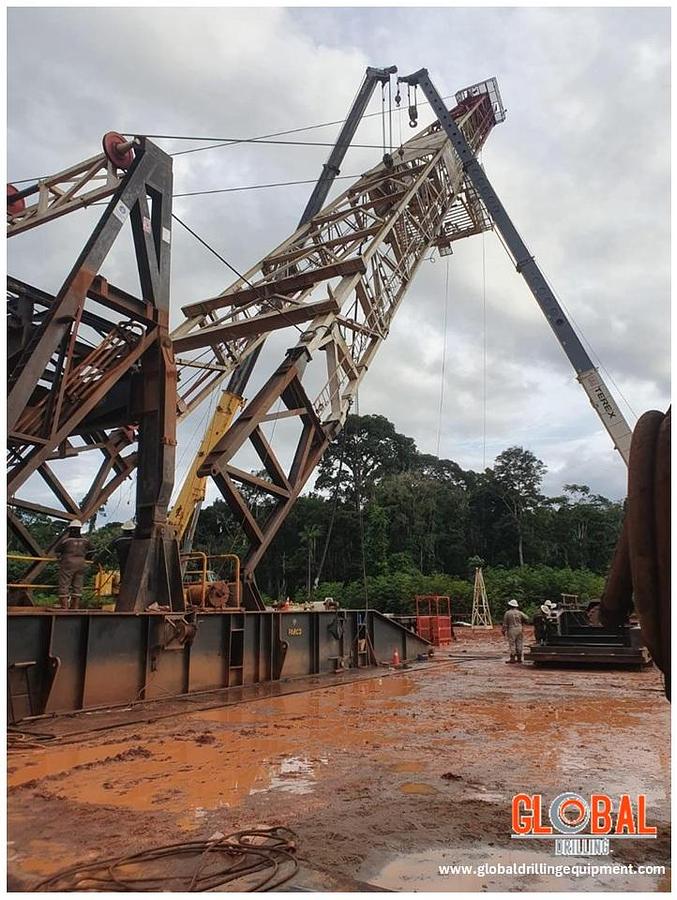

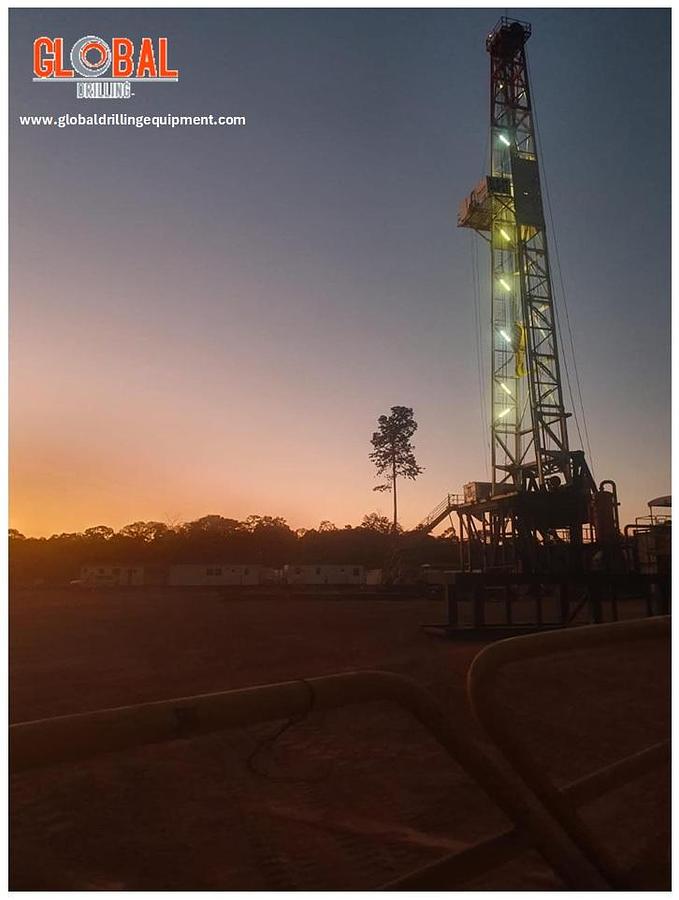

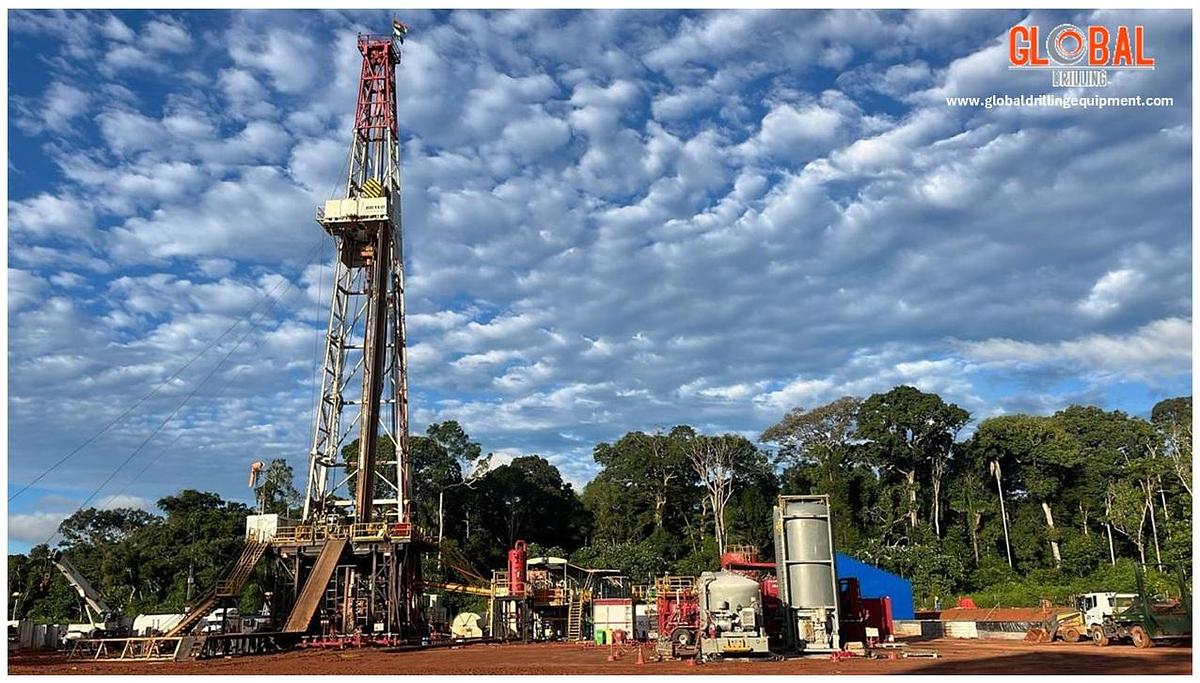

MAST AND SUBSTRUCTURE :

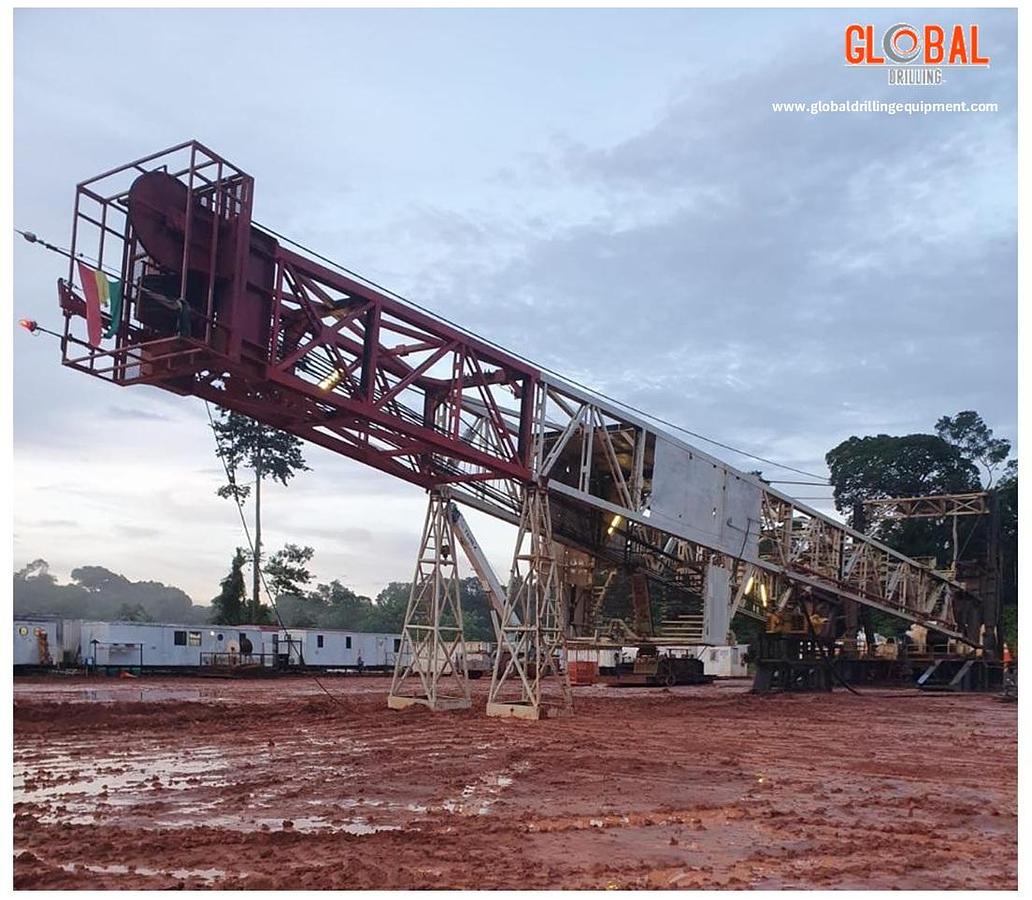

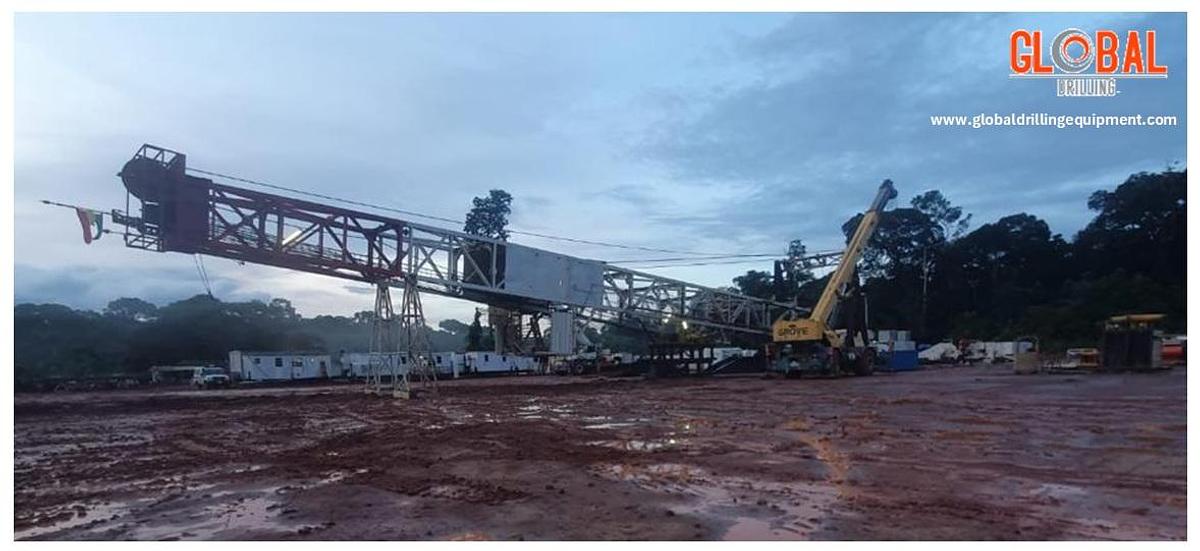

PARCO SLP 42 A Tipo Cantilever; 43.5 x 7.77 (m)

API gross nominal capacity : 1,500,000 lbs

Maximum static hook load : 1,333,000 lbs with 12-lines

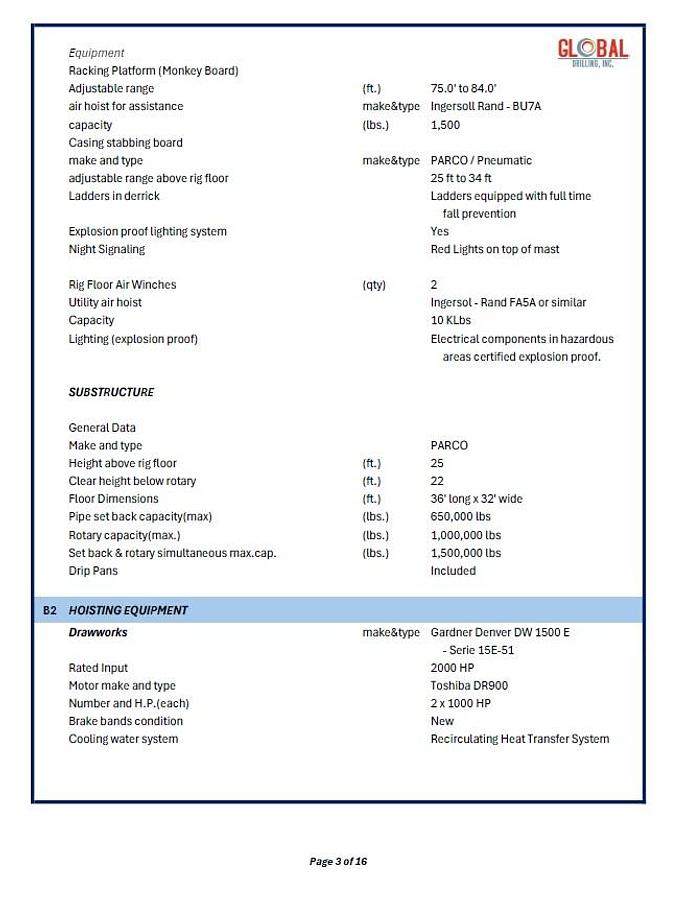

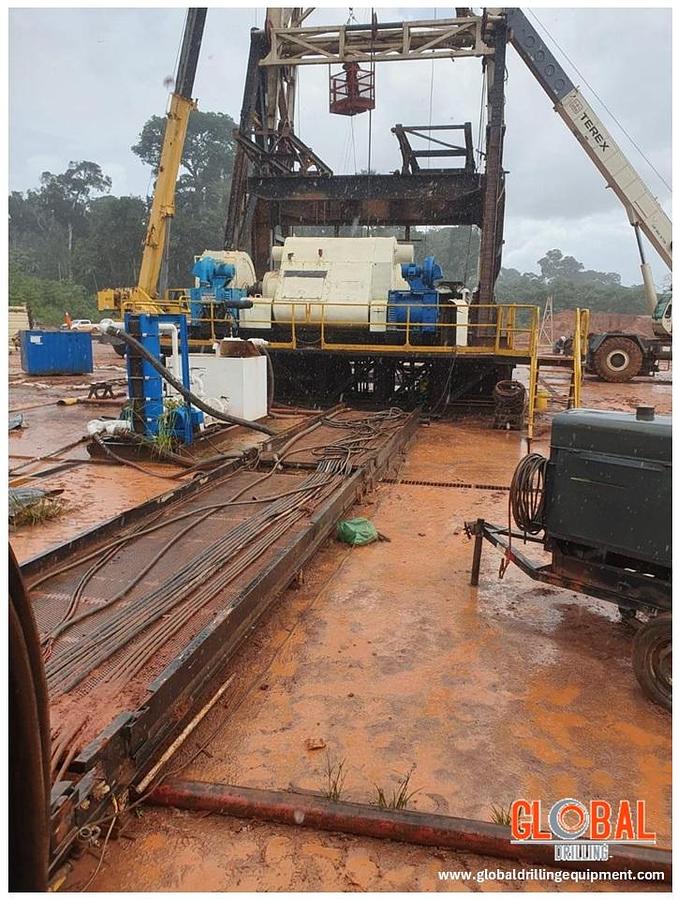

PARCO Substructure

Height above rig floor : 25 Ft

Clear height below rotary : 22 Ft

Floor Dimensions : 36' long x 32' wide

Pipe set back capacity(max) : 650,000 lbs

Rotary capacity(max.) : 1,000,000 lbs

Set back & rotary simultaneous max. cap. : 1,500,000 lbs

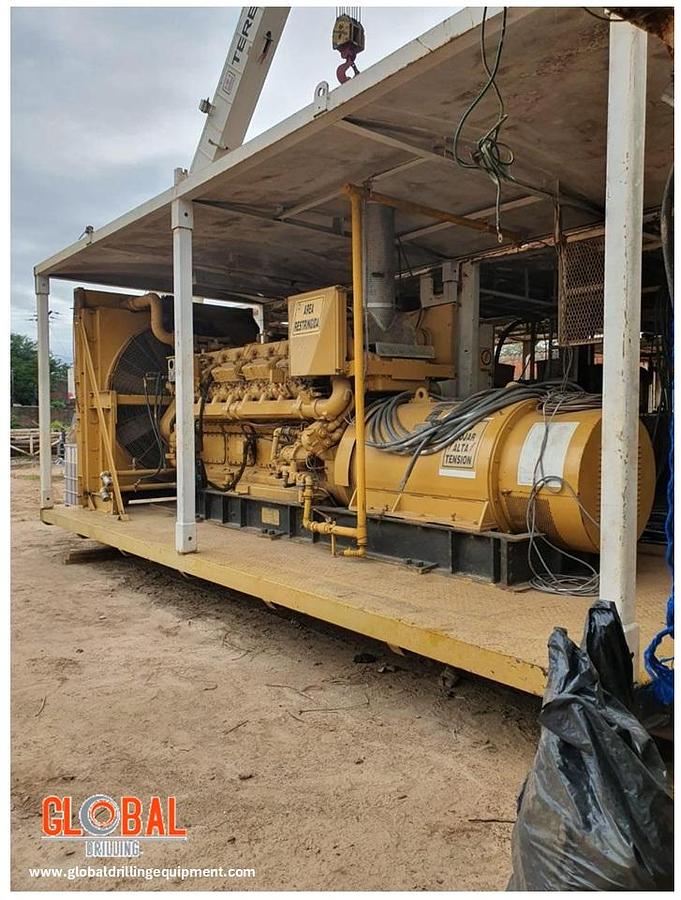

POWER PLANT AND TRANSMISSION :

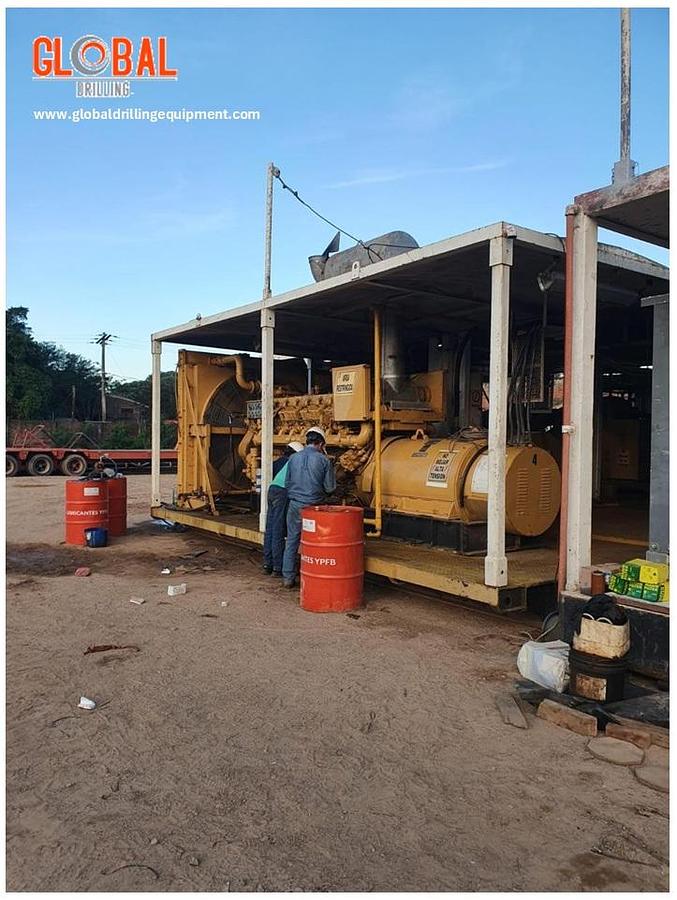

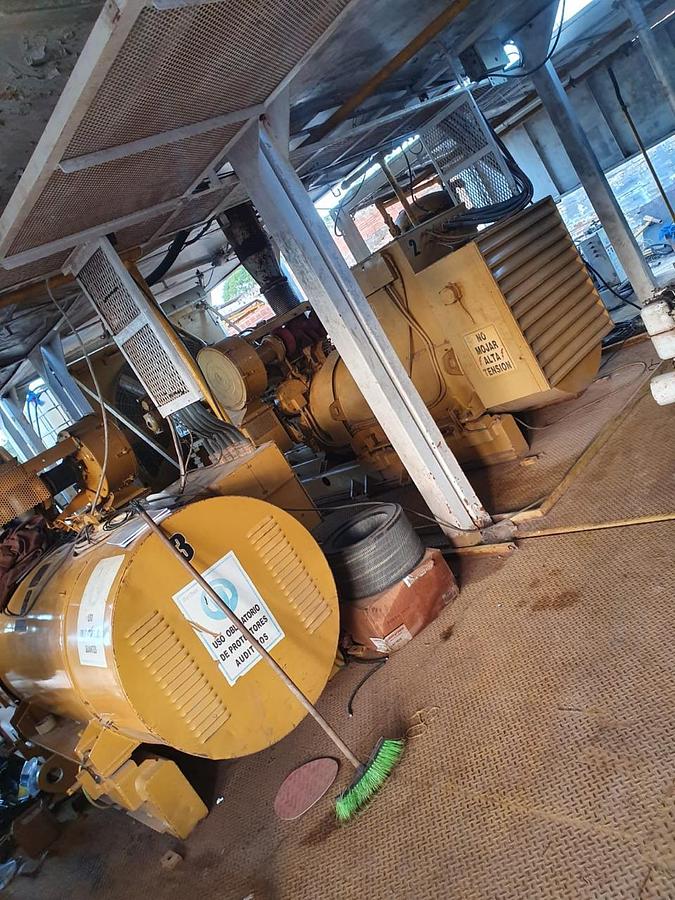

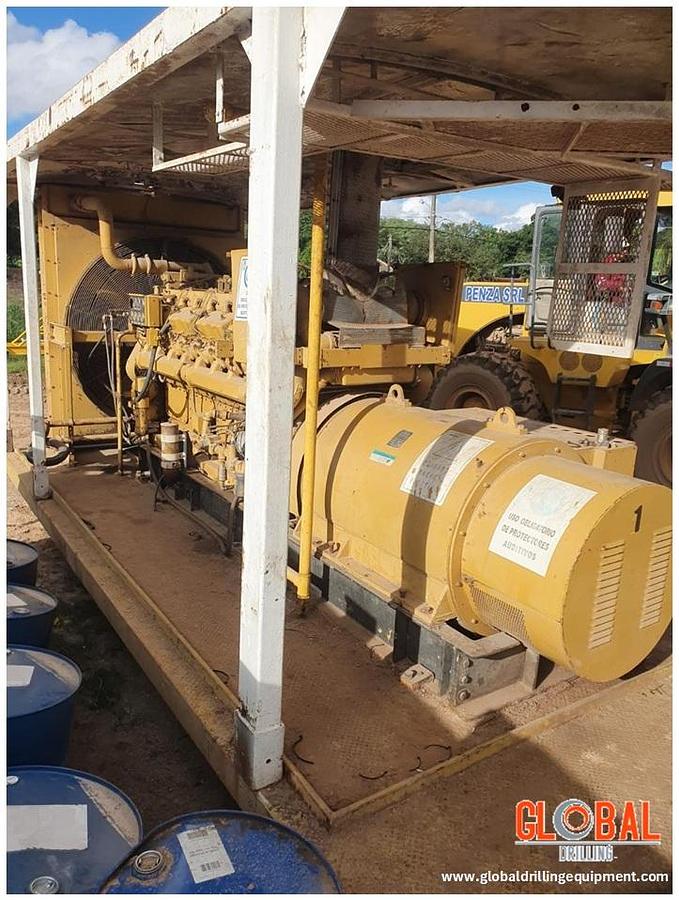

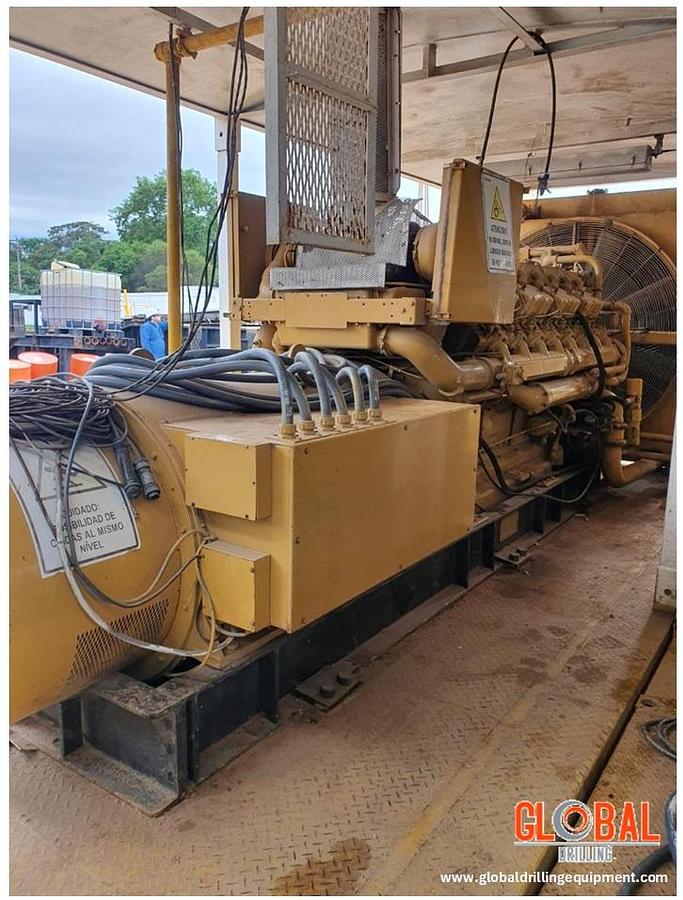

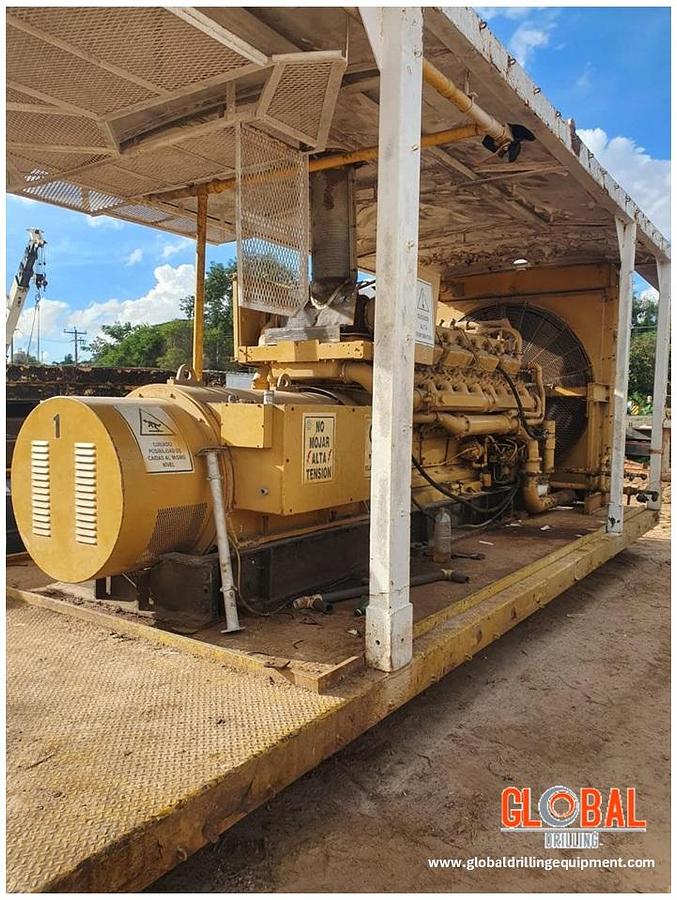

A.C. Generators : Three (3) units of KATO A256000000, 1500 KVA, 600V, 60Hz

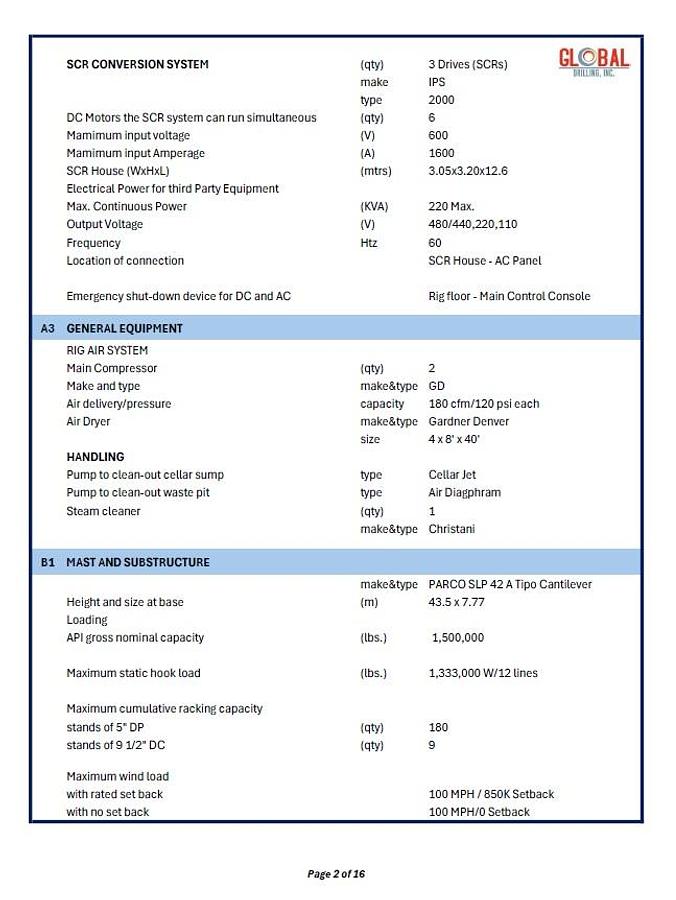

SCR CONVERSION SYSTEM :

Three (3) Drives (SCRs)

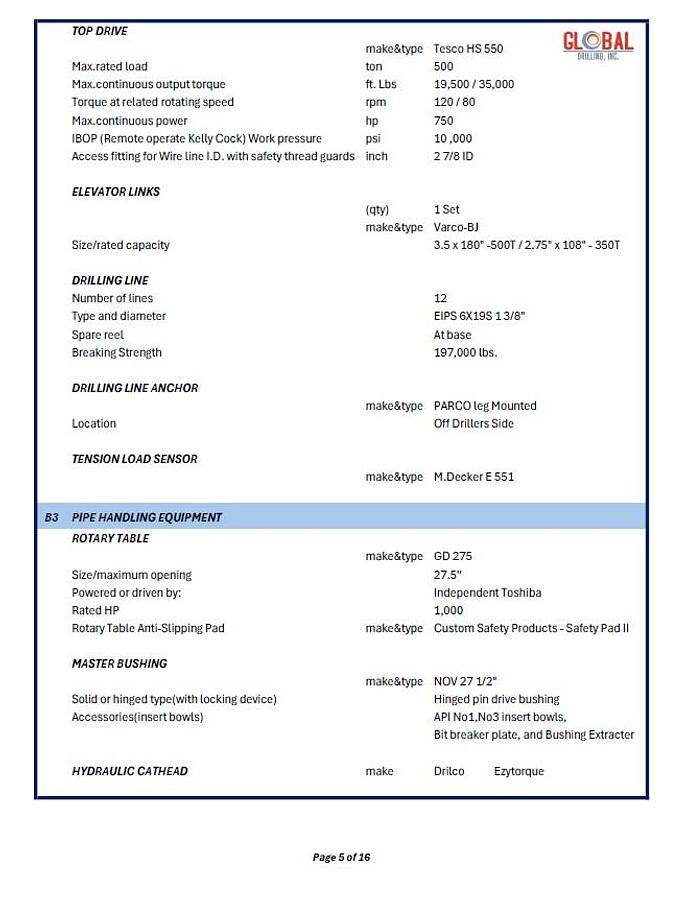

TOP DRIVE :

Tesco HS 550

Max. rated load : 500 Ton

Max. continuous output torque : 19,500 / 35,000 (ft. Lbs)
